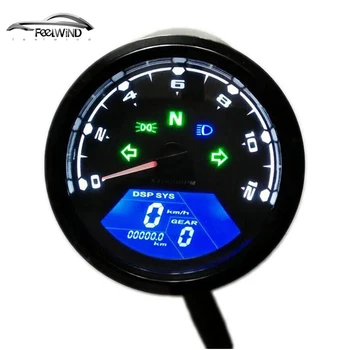

2017 12000 RMP kmh/mph Universal LCD Digital Odometer Speedometer Tachometer Gear indicator Motorcycle Scooter Golf Carts ATV

Features:
100% brand new and high quality.
Large screen, easy to read
Indicator functions: the left turn signal , high beam , right turn lights, position lights , N lights
LCD display gear position 1- 6
The alarm function : Low oil alarm, low voltage alarm
The button to switch mileage Subtotal.

Specifications:
Shell Color:Black
Working voltage: 8-18V
Speed range: 0-199km/h, the error +10%
Needle display rpm range: 0-12000, error +5%
Digital display odo Distance range: 0-99999.9km
Display diameter: 2.95 inch
Height: 2.165 inch
Wire length: 45.275 inch

Package includes:
1x LCD Digital Tachometer Speedometer Odometer Motorcycle Motorbike 12000RPM

Wiring Instructions:

Fleet blue —– right signal12v Blu —– distance light 12v Brown/red —– position lamp 12v Orange —– left signal 12v Red/black —– speed signal Green —– negative pole White —– Fuel Indicator Red —– battery cathode Black —– switch positive pole Red/White —– sensor positive pole Green —– sensor negative pole Black/white —– sensor signal Green/red —– N gear 12v Pink —– 1 gear 12v Blue/red —– 2 gear 12v Green/black —– 3gear 12v yellow/red —– 4 gear 12v yellow/white —– 5 gear 12v green/blue —– 6 gear 12v Working Voltage: 10v-15v Travel speed :22.8hz corresponding to 66km/h rotate speed 166Hz corresponding to 10*1000r/min Fuel:LCD: E point 98 F point 8 Button function: In the total state, press 3 seconds that can convert Metric to Imperial Units;In the condition of small gauge, press 3 seconds that can be reset.
